Flowlight Panel 4300 Eight Waves
Bestseller
RED LIGHT PANEL STAND KIT
Flowlight Panel 4300 Eight Waves + Auto Static Stand Kit
Complete red and near-infrared light therapy system, combining the Flowlight Panel 4300 Eight Waves with motorized height control and unified remote operation.
check
Stimulates mitochondrial energy production through precise panel positioning
check
Promotes cellular repair and collagen regeneration at controlled treatment distance
check
Reduces inflammation and oxidative stress through structured red light exposure
Low in stock
Included
Flowlight Panel 4300 Eight Waves
Read moreIncluded
Flowlight Auto Static Stand
Read moreDescriptionadd
INTRO

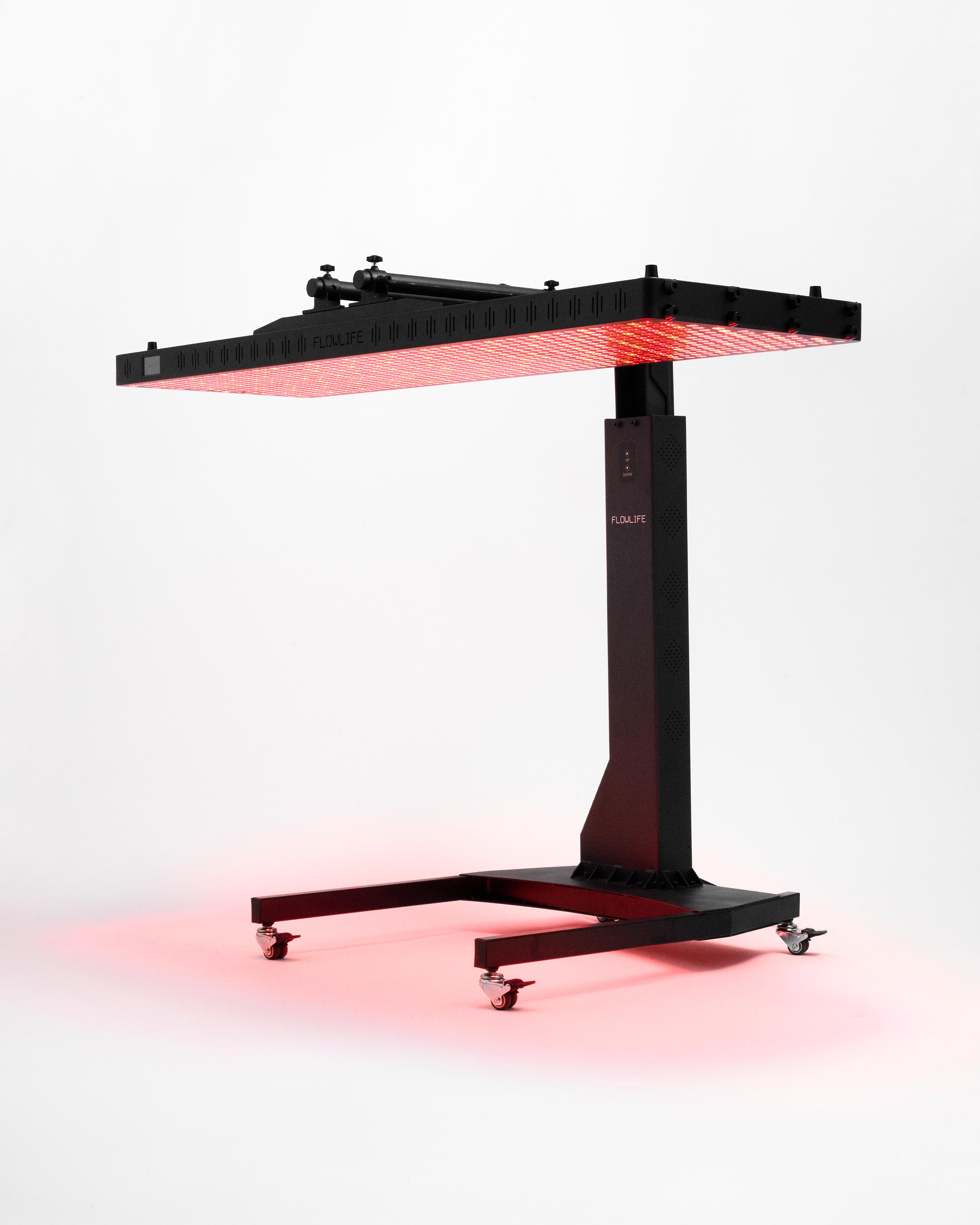

Flowlight Panel 4300 Eight Waves and Flowlight Auto Static Stand form a complete, precision-engineered light therapy system. The panel delivers eight calibrated wavelengths across a 1660 x 505 mm treatment surface. The motorized stand positions it with exact, repeatable height control. Together, they eliminate the two variables that limit therapy outcomes: wavelength precision and treatment distance.
TECHNOLOGY
The panel emits eight wavelengths spanning 610 nm to 1060 nm, targeting tissue at multiple depths from surface skin layers to deep muscle and joint structures. With 900 LED chips and an irradiance of 189 mW/cm² at 15 cm, the system delivers clinical-grade photon density across the full body. Pulse frequency adjusts from 1 Hz to 10,000 Hz. Intensity scales from 1% to 100%.
BODY EFFECT
Wavelengths between 610 nm and 660 nm address surface tissue, circulation, and skin repair. The near-infrared range from 810 nm to 1060 nm penetrates deeper, stimulating mitochondrial ATP production, reducing inflammation, and accelerating muscle recovery. Eight distinct wavelengths enable simultaneous activation across multiple tissue layers in a single session.
CUSTOMIZATION
The motorized stand adjusts from 1080 mm to 1500 mm with Start/Stop precision at any point in the stroke. Height, intensity, timer, and pulse settings are managed via a single 2.4 GHz wireless remote. Session duration is adjustable up to 60 minutes with a default 30-minute preset.
DESIGN
The panel mounts horizontally on a wide-base rolling frame with four 360-degree swivel casters. The motorized column holds position under full load without drift. The system is designed for consistent, structured full-body sessions with no manual repositioning required during treatment.
Technical informationadd
LIGHT PERFORMANCE
- Wavelengths: 610 nm, 630 nm, 660 nm, 810 nm, 830 nm, 850 nm, 940 nm, 1060 nm
- Total LED Chips: 900
- Irradiance: 189 mW/cm² at 15 cm
- Lens Angle: 30°
- Intensity Control: 1–100%
- Pulse Frequency: 1–10,000 Hz
ELECTRICAL SPECIFICATION
- Input Voltage: 100–240V AC, 50–60Hz
- Rated Power: 4320W
- Actual Power Consumption: 1253W ±10%
- Energy Consumption: 1.25 kWh
LIFTING SYSTEM
- Drive Type: Motorized electric column
- Stroke Range: 1080–1500mm
- Maximum Load Capacity: 50kg
- Operating Temperature: 0–40°C
CONTROL UNIT
- Remote Type: 2.4G wireless
- Functions: Height control, intensity, pulse frequency, timer
- Timer: 1–60 min, default 30 min
- Controls: Set, Reset, Up, Down, Start/Stop, +, –
MOBILITY
- Caster Type: 360-degree swivel
- Caster Quantity: 4
- Surface Compatibility: Flat floor
DIMENSIONS & WEIGHT
- Panel Size: 1660 × 505 × 65mm
- Stand Size: 900 × 730 × 1080mm
- Panel Weight: 36kg ±1kg
- Stand Net Weight: 40kg Color: Black
What's in the box?add
1x Flowlight Panel 4300 Eight Waves
1x Flowlight Auto Static Stand
1x Power Cable
1x Remote Controller (2.4G wireless)
2x Protective Eyewear
1x User Manual
Protective Eyewear
1x Solarium Goggles
1x Green Tinted Glasses
Mounting Hardware
1x Base Frame
1x Lifting Column
1x Motor Bracket
1x Cross Bar
4x Pipe Clamp
4x Clamp Bracket
4x Wheel
4x Bolt M8x65
6x Bolt M8x16
24x Bolt M4x8
2x Side Rail
2x Extension Bar
2x Connector Plate
2x Mounting Plate
Reviewsadd
MOTORIZED POSITIONING SYSTEM
Effective red and near-infrared light therapy depends on one critical variable: distance. When a panel is positioned too far from the body, irradiance drops sharply, and the photochemical response in the tissue weakens. The Flowlight Panel 4300 Eight Waves and Auto Static Stand were built as a system to eliminate this variable, giving exact, repeatable control over panel height without physical effort or approximation.
The motorized lifting column adjusts continuously between 1080 mm and 1500 mm, driven by a stable electric mechanism that holds position under the full 36 kg panel load. The Start/Stop function halts movement at any point in the stroke, locking the panel at the precise distance required for a given treatment area or body position. No manual locking, no drift, no readjustment mid-session.
Because stand height and light configuration are controlled through the same 2.4G wireless remote, the transition from positioning to treatment is immediate. Every structural element in the system serves one function: placing 900 LED chips at the exact distance from the body at which the body receives the intended irradiance.
