Flowlight Panel 1500 Seven Waves + Manual Flexible Stand Kit

INTRO

Flowlight Panel 1500 Seven Waves and Flowlight Manual Flexible Stand form a complete light therapy system. The panel delivers seven calibrated wavelengths across a 920 x 300 mm treatment surface. The stand positions it at manually selected height in portrait or landscape orientation. Together, they give direct, repeatable control over the two variables that determine therapy outcome: wavelength precision and treatment distance.

TECHNOLOGY

The panel emits seven wavelengths spanning 630 nm to 1060 nm, targeting tissue at multiple depths from surface skin layers to deep muscle and joint structures. With 300 LED chips and an irradiance of 184 mW/cm² at 15 cm, the system delivers clinical-grade photon density across the full treatment surface. Pulse frequency adjusts from 1 Hz to 10,000 Hz. Intensity scales from 1% to 100%.

BODY EFFECT

The red range at 630 nm and 660 nm addresses surface tissue, circulation, and skin repair. The near-infrared range from 810 nm to 1060 nm penetrates deeper, stimulating mitochondrial ATP production, reducing inflammation, and accelerating muscle recovery. Seven distinct wavelengths enable simultaneous activation across multiple tissue layers in a single session.

FLEXIBILITY

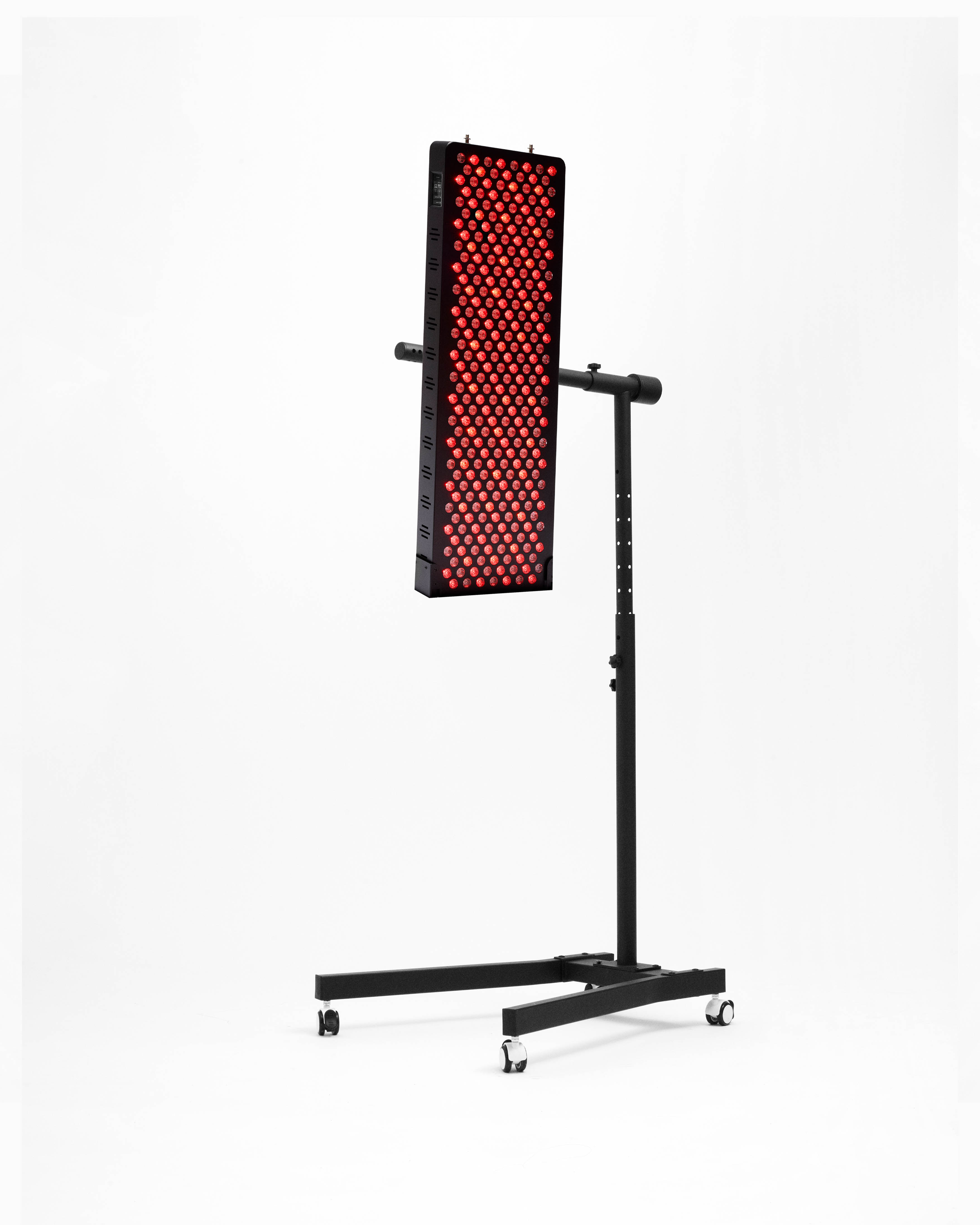

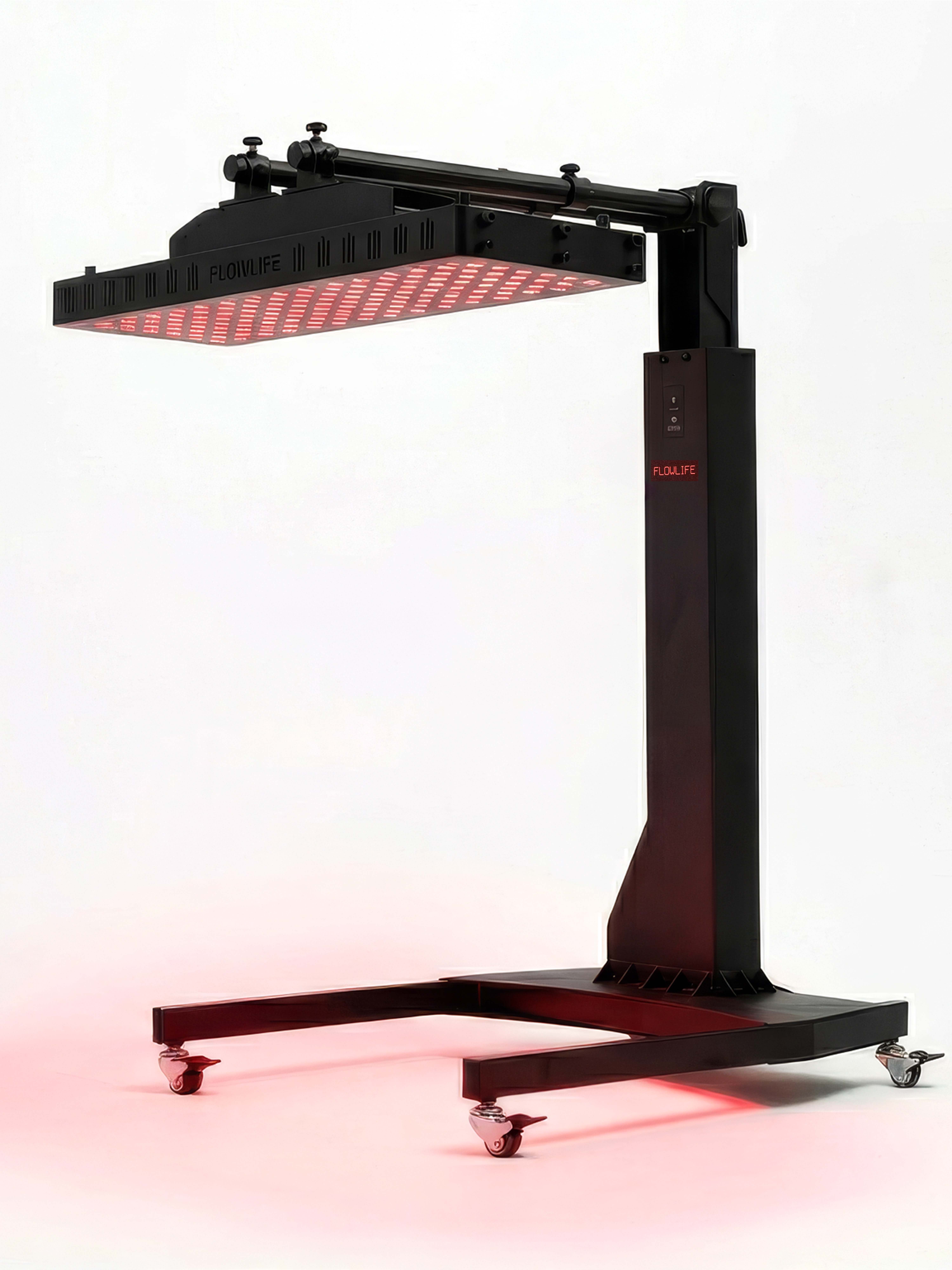

The stand mount rotates between portrait and landscape without tools. Portrait concentrates output on a narrow vertical zone, suited to standing treatment. Landscape spreads output across a wider horizontal field, suited to lying treatment. Height locks at multiple fixed positions via pin mechanism. No motor required. The configuration holds without drift.

DESIGN

Four independently locking casters allow repositioning between rooms and stable placement during treatment. The panel connects to the stand via a horizontal crossbar mount. No electronics in the stand. No power requirement beyond the panel itself.

LIGHT PERFORMANCE

• Wavelengths: 630 nm, 660 nm, 810 nm, 830 nm, 850 nm, 940 nm, 1060 nm
• Total LED Chips: 300 Irradiance: 184 mW/cm² at 15 cm
• Lens Angle: 30°/60°
• Intensity Control: 1–100%
• Pulse Frequency: 1–10,000 Hz

ELECTRICAL SPECIFICATION

• Input Voltage: 100–240V AC, 50–60Hz
• Rated Power: 1500W
• Actual Power Consumption: 540W
• Energy Consumption: 0.55 kWh

HEIGHT SYSTEM

• Adjustment Type: Manual pin-lock

MOBILITY

• Caster Type: 360-degree swivel
• Caster Quantity: 4
• Locking: Independent per caster
• Surface Compatibility: Flat floor

DIMENSIONS & WEIGHT

• Panel Size: 920 × 300 × 65mm
• Panel Weight: 13.5kg Color: Black
